- Dual-Channel Wireless Receiver
- 48 Selectable UHF Channels
- Broadcast-Quality Sound
- Includes Two Transmitters and One Receiver
- Seletable Stereo and Mono Mode
- Mic and Line-in
- Selectable Mute function
- Easy-to-read LCD displays
- Automatic LCD-locked Function
- Monitoring sound by headphone output (Receiver)
- Operation range can reach up to 100m(300′)
(without obstacle) - Two AA batteries for both transmitter and receiver
Related Products
BOYA BY-WM8 Pro-K2 Wireless Microphone
- Digital companding
- Up to 48 selectable channels
- Dual-channel receiver
- Up to 32 MHz of transmission bandwidth
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- User-friendly menu operation
- Muting function
- Locked plugs avoid accidental disconnection
- Transmission range up to 300′
BOYA BY-PVM1000 Professional Shotgun Microphone
BOYA BY-PVM1000 Professional Shotgun Microphone
- Broadcast-Quality Condenser Mic
- Two-step High Pass Filter (Flat/80Hz)
- Low noise circuitry
- Rugged, durable, lightweight and all-aluminum alloy construction
- 48V Phantom Power or 1.5 AA battery
Visit our camera store at 29, Otigba Street, Chekwas Plaza, Ikeja, Lagos.
Boya By WM8 pro k1
System
Oscillator type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 584 MHz-608 MHz
Channels: 48
Frequency response: 60Hz-15 KHz+/-3 dB
Operation range: 100m (300′)(without obstacle)
Operating temperature: 14° F to 122° F (-10℃ to +50℃)
Storage temperature: 14° F to 131° F (-10℃ to +55℃)
BOYA BY-WM6 Wireless Lavalier Microphone
Package Included
1 * Omni-directional lavalier microphone
1 * Stereo 3.5mm mini plug cable
1 * XLR output cable
1 * Microphone Holder clip
1 * Wind screen
1 * Belt clip
1 * Shoe mount adapter
1* COCOMALL Customized Cleaning Cloth
Original Manufactory Package
Item Pictures
BY-WM6
BY-WM6
BOYA BY-WM6 Wireless Lavalier Microphone
Transmitter
RF output power: 20 mW
Antenna: Flexible
Spurious emission: 250 nW or less
Audio input connector: 3.5mm mini jack
Audio input level: 600 mV-2000 mV
Reference deviation: ±7KHz (-60 dBV, 1 KHz input)
Input frequency range: 20 Hz-20 KHz
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2″ x 2.6″ x 1.1″ (10.6 x 6.7 x 2.9 cm)
Receiver
Antenna: Flexible
Audio input connector: 3.5mm mini jack
Signal-to-noise ratio: 80 dB
Distortion: 0.8% (-60 dBV, 1 KHz input)
Earphone output level: 60 mW, 32 Ohms/1KHz
Audio output level: 120 mV
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2″ x 2.6″ x 1.1″ (10.6 x 6.7 x 2.9 cm)
Weight: 98g (3.5 oz) without batteries
Lavalier Microphone
Transducer: Back electret Condenser
Polar pattern: Omni-directional
Frequency Range: 35Hz ~ 18 KHz
Signal / Noise：74dB SPL
Sensitivity: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz
Connector: 3.5mm locking mini plug
Length: 1.2m (4′)
BOYA By-WM8 Pro-K1 UHF Wireless Microphone
- UHF wireless microphone system includes one bodypack transmitter and one camera-mount receiver, digital companding for high-quality and clear sound.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared, and operation range can reach up to 100m(300)(without obstacle).
- Up to 48 selectable channels; supports stereo and mono mode; easy-to-read LCD displays and automatic LCD-locked function; with selectable mute function; monitoring sound by headphone output(receiver).
- Suitable for a wide range of wireless applications such as interviews, electronic news gathering (ENG), electronic field productions (EFP), film production, business and educational applications and more.
- Comes with wide range of accessories adapts the system to most of requirements, accessories include a lavalier microphone, a stereo 3.5mm cable, a XLR output cable, a shoe mount adapter, etc

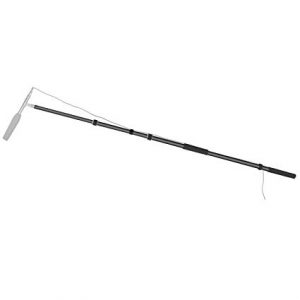

Pyle Mic Boom Pole
Pyle Mic Boom Pole – Telescope Microphone Boom Fish Pole for Shotgun Mics with Adjustable Length – 5.7’ ft.
- Convenient Boom Pole / Fish Pole Mic Placement
- Universal Shotgun Microphone Compatibility
- Lightweight, Durable & Reliable
- Quick & Easy Telescoping Length Adjustment
- Comfortable Handle Grips
- Foldable / Collapsing Shaft
- Clamp-Style Extension Quick Locking Mechanisms
- Integrated Velcro Straps for Cable Management
- Rugged Aluminum Metal Construction
- Microphone not included
Visit our camera store at 29, Otigba Street, Chekwas Plaza, Ikeja, Lagos.
Boya By WM8 pro k2
Specifications:
Brand: BOYA
Model: BY-WM8 Pro-K2
–System:
Oscillator Type: PLL Synthesized Control Oscillator
Channels: 48
–Transmitter:
RF Output Power: ≤10 mW
Antenna: 1/4 Lambda wire antenna
Spurious Emission: 250 nW or less
Audio Input Connector: 3.5mm mini jack
Reference Audio Input Level: -60dBV (MIC input, 0dB attenuation)
Reference Deviation: ±5 kHz (–60 dBV, 1 kHz input)
Input Frequency Range: 20Hz-20kHz
Distortion: 0.5% or less
Power Supply: Two AA size batteries
Operation Time: About 6 hours
Dimensions: 20.8 * 6.7 * 2.9cm (H * W * L)
Weight: 80g (without batteries)
–Receiver:
Antenna: 1/4 Lambda wire antenna
Audio Input Connector: 3.5mm mini jack
Signal-to-noise Ratio: 70 dB or more
Distortion: 0.5% or less
Headphone Output Level: 30mW (16 Ohm)
Audio Output Level: -60dBV
Power Supply: Two AA size batteries
Operation Time: About 4 hours
Dimensions: 20.8 * 6.7 * 2.9cm (H * W * L)
Weight: 90g (without batteries)
–Lavalier Microphone:
Transducer: Back electret condenser
Polar Pattern: Omni-directional
Frequency Range: 35Hz~18kHz
Signal / Noise: 74dB SPL
Sensitivity: -30dB±3dB / 0dB=1V/Pa, 1 kHz
Connector: 3.5mm locking mini plug
Length: 1.2m / 4ft
Package List:
1 * Receiver
1 * Transmitter A
1 * Transmitter B
1 * XLR Output Cable
1 * Stereo 3.5mm Mini Plug Cable
2 * Omni-directional Lavalier Microphone
2 * Microphone Holder Clip
2 * Wind Screen
3 * Belt Clip
1 * Shoe Mount Adapter
1 * Carrying Case
1 * User Manual (English)
1 * Andoer Cleaning Cloth
Note:
Batteries are not included
Rode NTG4 Shotgun Microphone
| Form Factor | Stand/Boom-Mount |
| Sound Field | Mono |
| Operating Principle | Line Gradient |
| Capsule | Condenser |
| Diaphragm | 0.5″ / 12.70 mm |
| Polar Pattern | Supercardioid |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | -10 dB |
| High-Pass Filter | 75 Hz |
| Tone Adjustment | High Boost: +6 dB |
| Indicators | Single LED (Status, Power) |
| On-Board Controls | High-Pass Filter, HF, Pad |
| Windscreen | Foam (Included) |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 135 dB SPL |
| Off-Axis Rejection | 5 dB at 60° 24 dB at 120° 18 dB at 180° |
| Impedance | 200 Ohms |
| Sensitivity | -32 dBV/Pa at 1 kHz |
| Dynamic Range | 119 dB |
| Signal-to-Noise Ratio | 78 dB |
| Equivalent Noise Level | 16 dB A-Weighted |
Connectivity
| Output Connectors | 1 x XLR 3-Pin |
Power
| Operating Voltage | 12 to 48 V |
| Operating Current Consumption | 4.5 mA |
Physical
| Color | Black |
| Mounting | 3/8″-16 Female, 5/8″-27 Female, Mic Clip (with Included Hardware) |
| Construction Material | Metal |
| Dimensions | ø: 0.87 x L: 8.86″ / ø: 22 x L: 225 mm |
| Weight | 4.44 oz / 126 g (Microphone) |
